Selector Logics

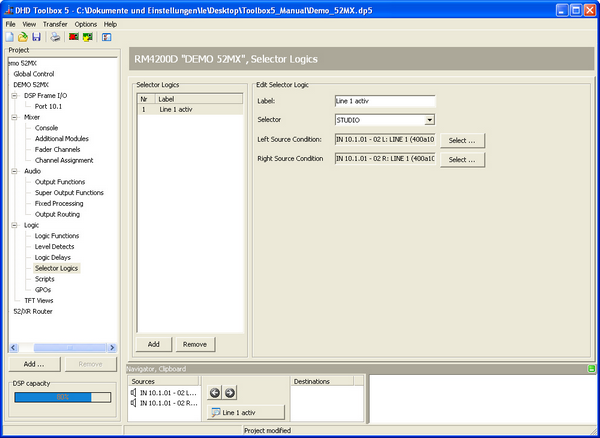

The selector logics become active if a defined source of a selector is chosen. To configure selector logics, in the project tree, select <Device>/Logic/Selector Logics.

In the Selector Logics list, all available selector logics are shown.

To create a selector logic, you need to create a selector. (See Monitor Functions)

Click Add to create a new selector logic. Click Remove to delete a selected selector logic. Both options are also available by right-clicking on the list.

In the Edit Selector Logic area, you can configure a selected entry:

• In the Label box, enter an appropriate name for the selector logic. This label may be up to 16 digits long.
• In the Selector list, choose the selector you want to assign.
• Click Select next to the Left Source Condition box. The Audio Sources window opens.
• In the Audio Sources window, select the audio source which should activate the selector logic.
• Click Assign to assign the audio source to the Left Source Condition. Alternatively, you can double-click on the desired audio source or drag it to the Left Source Condition box.
• Repeat steps 3 to 5 for the right audio source Right Source Condition.

The created Selector Logics are available as a logic source in the Logic Sources window.
